Getting started

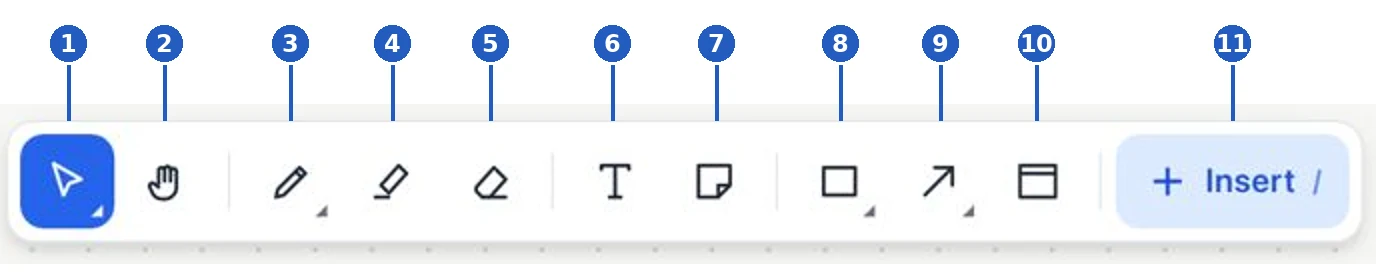

The toolbar at a glance
Toolbar key: ten main tools and the Insert button.
| No. | Control | Function | Key |
|---|---|---|---|
| 1 | Select | Select and manipulate existing objects. | V |
| 2 | Hand | Move the view without moving objects. | H |
| 3 | Pen | Draw or handwrite. | P |
| 4 | Highlighter | Add a transparent highlight. | Shift+M |
| 5 | Eraser | Remove strokes or parts of them. | E |
| 6 | Text | Add editable written content. | T |
| 7 | Sticky note | Create a movable note for an idea or task. | S |
| 8 | Shape | Draw shapes such as rectangles. | R |
| 9 | Connector | Join elements with arrows or lines. | A |
| 10 | Section | Create a named container. | F |
| 11 | Insert | Find and add the other element types. | / |
#Families and quick access to the last inserted element
A small mark in the corner indicates that related options are available. Click again or press and hold the tool to open its family. Select includes Lasso select (Q) and Eyedropper (I). Pen includes Marker (M). Shape includes Ellipse (O) and Diamond (D). Connector includes Line (L). Quick access to the last inserted element, when it appears, repeats that element type; it is not another fixed tool.
