Design and test a three-screen prototype

1 min readPDF page 128

Goal: create a flow for booking a workshop. Requirements: the full editor on desktop or iPad. Input: screen names and the transitions that follow. Result: an editable flow that you can play and review next to the requirements.

Screen	Content	Expected transition
Workshop list	Title, card and View details control	View details → Workshop details
Workshop details	Description, schedule, capacity and Book control	Book → Confirmation
Confirmation	Confirmation message and Back to list	Back to list → Workshop list

Create the page Design and three frames with the names from the table.
Build the content with Text, Shape and icons. Define a primary color token and apply it to the repeated actions.

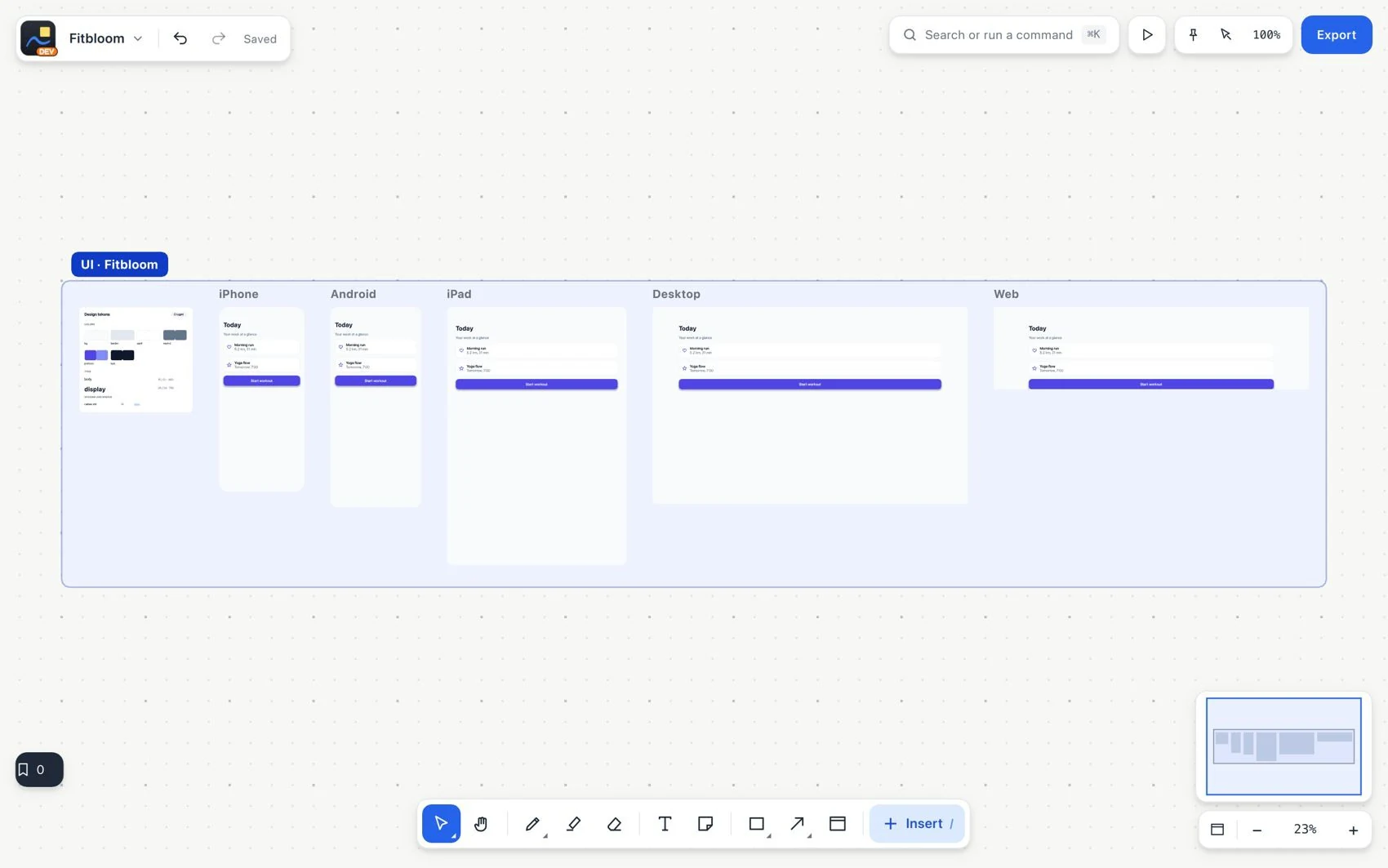

**Preset frame sizes** Design for different screen sizes

Create a workshop card component and use instances when it repeats. Keep specific text through overrides when appropriate.
Set up the three transitions with prototype links, not diagram arrows.
Start Play on Workshop list. Follow View details, Book and Back to list. Check each destination and the return to the start.

**Prototype links** Connect screens into a flow

Duplicate a screen version to explore alternatives without overwriting the chosen one. Keep the annotations linked to the frame.
Export the frame as HTML or React when you need to hand off code. Review the file separately; the real behavior of the service is added in the application environment.
